Bian Angbu (Hangzhou) Mechanical Seal Co., LTD is specialized in designing, manufacturing and selling mechanical seals for Shanghai Kaiquan KQSN single stage double suction centrifugal pump.

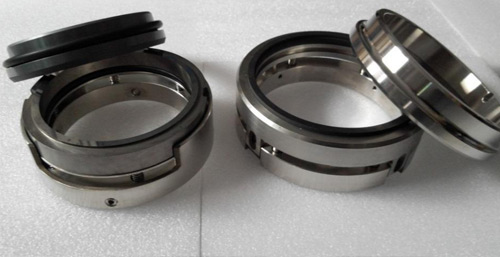

KQSN mechanical seal is a multi-spring single end mechanical seal, the sealing surface is made of high-quality alloy, the substrate material can be selected as SUS304, SUS316L and so on.

The structure has the advantages of resistance to blockage, abrasion and corrosion, and the service life is more than twice that of the ordinary mechanical seal. Single end face, multi - spring, sealing face

The force is even. When used, has nothing to do with the handedness, conforms to ISO3069, DIN24960 and GB6556 standards, strong versatility. To better meet customer needs

To, the pump type as long as the pump model can be quoted, all organic seals are in stock, pump shaft, impeller, coupling and other accessories can be matched.

Working parameters:

Fixed content: ≤10%

The temperature: - 20 ℃ to 280 ℃

Pressure: 1.6 MPa or less

Shaft diameter: 200 mm or less

Common models:

M74S2/110-G95A M74S2/115-G95A M74S2/120-G95A  M74S2/125-G95A M74S2/130-G95A

M74S2/135-G95A M74S2/140-G95A M74S2/145-G95A  M74S2/150-G95A  M74S2/155-G95A

M74S2/160-G95A M74S2/170-G95A M74S2/180-G95A  M74S2/190-G95A M74S2/200-G95A

Common pump models:

KQSN150-M4/310 KQSN150-M4/295 KQSN150-M4/276  KQSN150-M4/257 KQSN150-N4/310 KQSN150-N4/295  KQSN150-N4/276  KQSN150-N4/257 KQSN150-M6/245  KQSN150-M6/225  KQSN150-M6/211 KQSN150-M6/201 KQSN150-N6/245 KQSN150-N6/228  KQSN150-N6/208 KQSN150-N6/201 KQSN150-M7/332 KQSN150-M7/318  KQSN150-M7/305 KQSN150-M7/283 KQSN150-M7/260  KQSN150-N7/332 KQSN150-N7/305 KQSN150-N7/283  KQSN150-N7/260 KQSN150-M9/206 KQSN150-M9/196  KQSN150-M9/175  KQSN150-M9/167 KQSN150-N9/206  KQSN150-N9/187 KQSN150-N9/175 KQSN150-N9/167  KQSN150-M13/169 KQSN150-M13/164  KQSN150-M13/152  KQSN150-M13/144 KQSN150-N13/169 KQSN150-N13/157 KQSN150-N13/147  KQSN150-N13/144 KQSN200-M4/388  KQSN200-M4/360 KQSN200-M4/328 KQSN200-M4/305  KQSN200-M4/283 KQSN200-N4/388 KQSN200-N4/360  KQSN200-N4/328  KQSN200-N4/286 KQSN200-M5/420 KQSN200-M5/398 KQSN200-M5/378 KQSN200-M5/355 KQSN200-M5/336 KQSN200-N5/418  KQSN200-N5/396  KQSN200-N5/375 KQSN200-N5/352 KQSN200-N5/334 KQSN200-M6/280 KQSN200-M6/274 KQSN200-M6/258  KQSN200-M6/237 KQSN200-N6/280 KQSN200-N6/258  KQSN200-N6/244 KQSN200-N6/237 KQSN200-M8/305 KQSN200-M8/292  KQSN200-M8/278 KQSN200-M8/256  KQSN200-M8/235 KQSN200-N8/305 KQSN200-N8/278  KQSN200-N8/256 KQSN200-N8/235  KQSN200-M9/235  KQSN200-M9/223 KQSN200-M9/212 KQSN200-M9/200 KQSN200-N9/235 KQSN200-N9/228 KQSN200-N9/212  KQSN200-N9/198  KQSN200-M12/246  KQSN200-M12/228   KQSN200-M12/211 KQSN200-M12/195  KQSN200-N12/246  KQSN200-N12/228  KQSN200-N12/211 KQSN200-N12/195   KQSN200-M13/204 KQSN200-M13/188 KQSN200-M13/174  KQSN200-M13/165 KQSN200-N13/204 KQSN200-N13/188  KQSN200-N13/180 KQSN200-N13/164 KQSN200-M19/162  KQSN200-M19/155 KQSN200-M19/146 KQSN200-M19/138  KQSN200-N19/162 KQSN200-N19/155 KQSN200-N19/146  KQSN200-N19/135 KQSN250-M4/595 KQSN250-M4/565  KQSN250-M4/540 KQSN250-M4/503 KQSN250-M4/473  KQSN250-N4/595 KQSN250-N4/565 KQSN250-N4/531  KQSN250-N4/497 KQSN250-N4/475 KQSN250-M6/473  KQSN250-M6/447 KQSN250-M6/437 KQSN250-M6/410  KQSN250-M6/383 KQSN250-M6/356 KQSN250-N6/473  KQSN250-N6/447 KQSN250-N6/428 KQSN250-N6/410  KQSN250-N6/383 KQSN250-N6/356 KQSN250-M9/367  KQSN250-M9/349 KQSN250-M9/327 KQSN250-M9/300  KQSN250-N9/367 KQSN250-N9/341 KQSN250-N9/316  KQSN250-N9/300 KQSN250-M13/283 KQSN250-M13/268  KQSN250-M13/251 KQSN250-M13/234 KQSN250-N13/283  KQSN250-N13/260 KQSN250-N13/249 KQSN250-N13/234  KQSN250-M19/245 KQSN250-M19/235 KQSN250-M19/216  KQSN250-M19/208 KQSN250-N19/245 KQSN250-N19/228  KQSN250-N19/216 KQSN250-N19/208 KQSN300-M3/816  KQSN300-M3/780 KQSN300-M3/738 KQSN300-M3/685  KQSN300-N3/816 KQSN300-N3/780  KQSN300-N3/738  KQSN300-N3/685 KQSN300-M4/690 KQSN300-M4/665  KQSN300-M4/652 KQSN300-M4/618  KQSN300-M4/592  KQSN300-M4/559 KQSN300-N4/690 KQSN300-N4/665  KQSN300-N4/638 KQSN300-N4/612  KQSN300-N4/585  KQSN300-N4/559 KQSN300-M6/530 KQSN300-M6/509  KQSN300-M6/482  KQSN300-M6/456 KQSN300-M6/443  KQSN300-N6/530 KQSN300-N6/509 KQSN300-N6/488  KQSN300-N6/445  KQSN300-M9/445 KQSN300-M9/423  KQSN300-M9/387 KQSN300-M9/356 KQSN300-N9/445  KQSN300-N9/418  KQSN300-N9/392 KQSN300-N9/356  KQSN300-M13/348 KQSN300-M13/331 KQSN300-M13/313  KQSN300-M13/289 KQSN300-N13/348 KQSN300-N13/334  KQSN300-N13/303 KQSN300-N13/289 KQSN300-M19/285  KQSN300-M19/271 KQSN300-M19/257 KQSN300-M19/242  KQSN300-N19/285 KQSN300-N19/270 KQSN300-N19/254  KQSN300-N19/242 KQSN300-M27/251 KQSN300-M27/233  KQSN300-M27/223 KQSN300-M27/213 KQSN300-N27/251  KQSN300-N27/238 KQSN300-N27/213 KQSN350-M4/765  KQSN350-M4/718 KQSN350-M4/693 KQSN350-M4/666  KQSN350-N4/765 KQSN350-N4/718 KQSN350-N4/693  KQSN350-N4/666 KQSN350-M6/654 KQSN350-M6/634  KQSN350-M6/608 KQSN350-M6/583 KQSN350-M6/543  KQSN350-M6/531 KQSN350-N6/653 KQSN350-N6/627  KQSN350-N6/601 KQSN350-N6/575 KQSN350-N6/530  KQSN350-M9/503 KQSN350-M9/473 KQSN350-M9/453  KQSN350-M9/433 KQSN350-M9/415 KQSN350-N9/502  KQSN350-N9/477 KQSN350-N9/452 KQSN350-N9/437  KQSN350-N9/415 KQSN350-M13/406 KQSN350-M13/390  KQSN350-M13/357 KQSN350-M13/333 KQSN350-N13/406  KQSN350-N13/386  KQSN350-N13/361 KQSN350-N13/341  KQSN350-M19/340 KQSN350-M19/326 KQSN350-M19/303  KQSN350-M19/289 KQSN350-N19/340 KQSN350-N19/320  KQSN350-N19/296 KQSN350-N19/289 KQSN350-M27/290  KQSN350-M27/273 KQSN350-M27/255 KQSN350-M27/247  KQSN350-N27/290 KQSN350-N27/267 KQSN350-N27/247  KQSN400-M4/900 KQSN400-M4/835  KQSN400-M4/775  KQSN400-M4/705 KQSN400-M4/630 KQSN400-N4/900  KQSN400-N4/835 KQSN400-N4/775 KQSN400-N4/705  KQSN400-N4/630 KQSN400-M6/725 KQSN400-M6/675  KQSN400-M6/620 KQSN400-M6/570 KQSN400-N6/724  KQSN400-N6/674 KQSN400-N6/619 KQSN400-N6/570  KQSN400-M9/573 KQSN400-M9/526 KQSN400-M9/486  KQSN400-M9/446 KQSN400-N9/585 KQSN400-N9/573  KQSN400-N9/526 KQSN400-N9/486 KQSN400-N9/446  KQSN400-M13/481 KQSN400-M13/470 KQSN400-M13/438  KQSN400-M13/406 KQSN400-M13/374 KQSN400-N13/481  KQSN400-N13/470 KQSN400-N13/438 KQSN400-N13/406  KQSN400-N13/374 KQSN400-M19/402 KQSN400-M19/377  KQSN400-M19/352 KQSN400-M19/337 KQSN400-N19/402  KQSN400-N19/377 KQSN400-N19/352 KQSN400-N19/337  KQSN450-M6/850 KQSN450-M6/788 KQSN450-M6/730  KQSN450-M6/664 KQSN450-M6/595 KQSN450-N6/850  KQSN450-N6/788 KQSN450-N6/730 KQSN450-N6/664  KQSN450-N6/595 KQSN450-M9/673 KQSN450-M9/615  KQSN450-M9/568 KQSN450-M9/518 KQSN450-N9/673  KQSN450-N9/615 KQSN450-N9/568 KQSN450-N9/518  KQSN450-M13/538 KQSN450-M13/502 KQSN450-M13/465  KQSN450-M13/428 KQSN450-N13/538 KQSN450-N13/502  KQSN450-N13/465 KQSN450-N13/428 KQSN500-M18/460 KQSN500-M18/431 KQSN500-M18/402 KQSN500-M18/385  KQSN500-N18/460 KQSN500-N18/431 KQSN500-N18/402  KQSN500-N18/385 KQSN500-M6/860 KQSN500-M6/834  KQSN500-M6/791 KQSN500-M6/757 KQSN500-M6/705  KQSN500-N6/860 KQSN500-N6/817 KQSN500-N6/783  KQSN500-N6/748 KQSN500-N6/705 KQSN500-M9/675  KQSN500-M9/648 KQSN500-M9/621 KQSN500-M9/587  KQSN500-M9/554 KQSN500-N9/676 KQSN500-N9/648  KQSN500-N9/613 KQSN500-N9/587 KQSN500-N9/574  KQSN500-M13/530 KQSN500-M13/519 KQSN500-M13/498  KQSN500-M13/477 KQSN500-M13/461 KQSN500-M13/440  KQSN500-N13/530 KQSN500-N13/504 KQSN500-N13/477  KQSN500-N13/440 KQSN500-M19/452 KQSN500-M19/434  KQSN500-M19/407 KQSN500-M19/371 KQSN500-N19/452  KQSN500-N19/420 KQSN500-N19/389 KQSN500-N19/371  KQSN500-M28/390 KQSN500-M28/371 KQSN500-M28/347 KQSN500-M28/332 KQSN500-N28/390 KQSN500-N28/374  KQSN500-N28/351 KQSN500-N28/332 KQSN600-M6/1040  KQSN600-M6/964 KQSN600-M6/893 KQSN600-M6/812  KQSN600-M6/730 KQSN600-N6/1040 KQSN600-N6/964  KQSN600-N6/893 KQSN600-N6/812 KQSN600-N6/730  KQSN600-M9/782 KQSN600-M9/751 KQSN600-M9/712  KQSN600-M9/657 KQSN600-N9/782 KQSN600-N9/766  KQSN600-N9/719 KQSN600-N9/680 KQSN600-N9/657  KQSN600-M10/825 KQSN600-M10/790  KQSN600-M10/750  KQSN600-M10/710 KQSN600-M10/670 KQSN600-N10/710  KQSN600-N10/675 KQSN600-N10/640 KQSN600-N10/605  KQSN600-M13/631 KQSN600-M13/618 KQSN600-M13/593 KQSN600-M13/568 KQSN600-M13/540 KQSN600-N13/631  KQSN600-N13/606 KQSN600-N13/574 KQSN600-N13/540  KQSN600-M19/540 KQSN600-M19/529 KQSN600-M19/508  KQSN600-M19/470 KQSN600-N19/540 KQSN600-N19/518 KQSN600-N19/497 KQSN600-N19/470 KQSN600-M27/485  KQSN600-M27/461 KQSN600-M27/437 KQSN600-M27/412 KQSN600-N27/485 KQSN600-N27/466 KQSN600-N27/441  KQSN600-N27/412 KQSN700-M9/936 KQSN700-M9/901 KQSN700-M9/869 KQSN700-M9/800 KQSN700-M9/752  KQSN700-N9/935 KQSN700-N9/900 KQSN700-N9/868 KQSN700-N9/798 KQSN700-N9/751 KQSN700-M9J/936  KQSN700-M9J/901 KQSN700-M9J/869 KQSN700-M9J/800 KQSN700-M9J/752 KQSN700-N9J/935 KQSN700-N9J/900  KQSN700-N9J/868 KQSN700-N9J/798 KQSN700-N9J/751 KQSN700-M14/701 KQSN700-M14/639 KQSN700-M14/602  KQSN700-M14/578 KQSN700-N14/700 KQSN700-N14/638 KQSN700-N14/600 KQSN700-N14/577 KQSN700-M14J/701  KQSN700-M14J/639 KQSN700-M14J/602 KQSN700-M14J/578 KQSN700-N14J/700 KQSN700-N14J/638 KQSN700-N14J/600  KQSN700-N14J/577 KQSN700-M20/621 KQSN700-M20/590 KQSN700-M20/538 KQSN700-M20/510 KQSN700-N20/620  KQSN700-N20/585 KQSN700-N20/559 KQSN700-N20/513 KQSN700-M20J/621 KQSN700-M20J/590 KQSN700-M20J/538  KQSN700-M20J/510 KQSN700-N20J/620 KQSN700-N20J/585 KQSN700-N20J/559 KQSN700-N20J/513 KQSN700-M27/571  KQSN700-M27/547 KQSN700-M27/526 KQSN700-M27/510 KQSN700-N27/570 KQSN700-N27/535 KQSN700-N27/513  KQSN700-N27/502 KQSN700-M27J/571 KQSN700-M27J/547 KQSN700-M27J/526 KQSN700-M27J/510 KQSN700-N27J/570  KQSN700-N27J/535 KQSN700-N27J/513 KQSN700-N27J/502 KQSN800-M9/1128  KQSN800-M9/1088 KQSN800-M9/1038  KQSN800-M9/998  KQSN800-M9/952 KQSN800-N9/1118 KQSN800-N9/1058 KQSN800-N9/1028 KQSN800-N9/996 KQSN800-N9/951  KQSN800-M14/862 KQSN800-M14/818 KQSN800-M14/765  KQSN800-M14/720 KQSN800-M14/666 KQSN800-N14/860  KQSN800-N14/817  KQSN800-N14/763  KQSN800-N14/718 KQSN800-N14/664  KQSN800-M14J/862 KQSN800-M14J/818  KQSN800-M14J/765 KQSN800-M14J/720 KQSN800-M14J/666 KQSN800-N14J/860 KQSN800-N14J/817 KQSN800-N14J/763  KQSN800-N14J/718  KQSN800-N14J/664 KQSN800-M20/707 KQSN800-M20/673 KQSN800-M20/633 KQSN800-M20/598  KQSN800-N20/706  KQSN800-N20/672  KQSN800-N20/631 KQSN800-N20/597 KQSN800-M20J/707 KQSN800-M20J/673  KQSN800-M20J/633 KQSN800-M20J/598 KQSN800-N20J/706 KQSN800-N20J/672 KQSN800-N20J/631 KQSN800-N20J/597  KQSN800-M24/666  KQSN800-M24/651  KQSN800-M24/637  KQSN800-M24/625  KQSN800-M24/618 KQSN800-N24/665  KQSN800-N24/650  KQSN800-N24/636  KQSN800-N24/622 KQSN800-M28/567 KQSN800-M28/538  KQSN800-M28/508  KQSN800-M28/472 KQSN800-M28/448  KQSN800-N28/566 KQSN800-N28/537  KQSN800-N28/507  KQSN800-N28/471  KQSN800-M28J/567 KQSN800-M28J/538 KQSN800-M28J/508  KQSN800-M28J/472 KQSN800-M28J/448  KQSN800-N28J/566  KQSN800-N28J/537 KQSN800-N28J/507 KQSN800-N28J/471 KQSN900-M14/1021 KQSN900-M14/970 KQSN900-M14/925  KQSN900-M14/871 KQSN900-M14/818 KQSN900-N14/1020 KQSN900-N14/969 KQSN900-N14/924 KQSN900-N14/870  KQSN900-N14/817 KQSN900-M14J/1021 KQSN900-M14J/970 KQSN900-M14J/925 KQSN900-M14J/871 KQSN900-M14J/818  KQSN900-N14J/1020 KQSN900-N14J/969 KQSN900-N14J/924 KQSN900-N14J/870 KQSN900-N14J/817 KQSN900-M23/868  KQSN900-M23/818  KQSN900-M23/778  KQSN900-M23/736  KQSN900-M23/680  KQSN900-N23/866 KQSN900-N23/817  KQSN900-N23/777  KQSN900-N23/735  KQSN900-N23/680  KQSN900-M23J/868  KQSN900-M23J/818  KQSN900-M23J/778  KQSN900-M23J/736  KQSN900-M23J/680  KQSN900-N23J/866  KQSN900-N23J/817  KQSN900-N23J/777  KQSN900-N23J/735 KQSN900-N23J/680  KQSN900-M27/813  KQSN900-M27/781  KQSN900-M27/750  KQSN900-M27/718  KQSN900-M27/685  KQSN900-N27/812  KQSN900-N27/780  KQSN900-N27/749  KQSN900-N27/716  KQSN900-N27/683 KQSN900-M27J/813  KQSN900-M27J/781 KQSN900-M27J/750  KQSN900-M27J/718  KQSN900-M27J/685  KQSN900-N27J/812  KQSN900-N27J/780  KQSN900-N27J/749  KQSN900-N27J/716  KQSN900-N27J/683
